Use of HTTP operations for RESTful APIs

Introduction

A core principle of RESTful APIs is the use of standard HTTP operations: GET, PUT, POST, PATCH and DELETE (and to a lesser extent, HEAD and OPTIONS). The CONNECT and TRACE operations are rarely, if ever, used within RESTful APIs and are therefore not considered here.

This appendix provides guidelines for using POST as a complex search operation (POST …//search). An Internet Draft now exists for implementing a new HTTP operation, QUERY. It is expected that, over time, this will replace POST as the method for complex searches. However, since the specification is still under development and there is currently no support for this new operation within existing RESTful API specifications, it will be disregarded for now.

The HTTP standard allows for a considerable amount of flexibility in the functionality and use of operations. Since the sector aims for consistent behaviour across RESTful APIs, it is necessary to further refine how these operations are used. This appendix provides additional guidelines and serves as further clarification of guideline 08.

Each operation is described in terms of application and restrictions, including the use of request and response parameters/payloads. Also outlined are the specific response codes logically applicable to each operation.

Additionally, each operation should generate these common error codes:

Responses to Operations

When designing RESTful APIs, two general approaches can be observed for implementing POST, PUT, and PATCH:

  1. Mutation operations (POST, PUT, PATCH) return the (new) state of the modified/created resource.
  2. Mutation operations (POST, PUT, PATCH) return only a status.

Both approaches are allowed from a REST ‘best practices’ perspective. However, the downside of option (1) is that it introduces multiple ‘backdoors’ for retrieving a resource. Particularly in large, complex data structures and/or intricate authorisation models, it is not always straightforward to determine exactly what should be returned. Ideally, these algorithms should be implemented in a single location.

Additionally, in the case of POST and PUT, the requester already provides most of the resource state in the request, making the response largely redundant. This results in unnecessary overhead, especially in complex data models. Finally, the response from POST, PUT, and PATCH is not inherently cacheable, unlike GET.

Considering the above, only option (2) is permitted: POST, PUT, and PATCH must return only a status, and the GET operation should be used to retrieve the resource state. In some cases (where the requester immediately requires the new state), this results in the overhead of one additional GET call. However, the advantages outweigh this drawback.

GET Operation

Explanation

A GET request with a resource ID is the designated (and only) method for retrieving a specific resource.

The operation may result in the following response codes:

A GET request without an explicit resource ID serves as a standard search query. A maximum of five query parameters may be specified for filtering. If more parameters are needed, if the search functionality is complex, or if privacy concerns arise, POST should be used instead (see further details). Depending on the number and size of responses, pagination may be implemented to divide the results into manageable blocks. See guideline ID 28 for details.

The operation may result in the following response codes:

In all cases, a GET request must never contain a request body!

Justification

Retrieving the current state of a resource must always yield consistent results. Therefore, returning the resource state via alternative methods such as POST, PUT, or PATCH, where state consistency cannot be guaranteed, is not allowed. Additionally, the general REST principle states that a resource must have exactly one unique identity (URI). This principle is easily enforced by linking the resource to a GET URL combined with a resource ID in this URL.

An additional advantage is that access control for the attributes of the resource only needs to be enforced in one place (the GET request), reducing the risk of data leaks.

Exception

A GET URL must never contain personally identifiable information (PII), meaning information that can directly or indirectly be traced back to individuals.

For a GET request on a resource, this requires careful selection of the resource ID format (e.g., never use a social security number to identify a person). Ideally, a resource ID should be a UUID.

When using GET as a search query, special attention should be given to the combination of query parameters. If this combination could lead to the exposure of sensitive information, POST should be used instead of GET to implement the search function.

PUT Operation

Explanation

A PUT request is always executed on a unique resource (i.e., a URL that determines the unique identity of the resource). The result is that the server replaces the existing resource (if present) with a new version, where the state is determined by the received attributes while maintaining the resource’s identity. This means that some attributes may be removed (if they are no longer included in the new state), while new attributes may be added (if they were not present in the previous state).

Additionally, the requester may include an If-Match header containing the ETag key known to them for the respective resource. This allows the server to validate the resource state before executing the update (see RFC-7232 for details).

The operation may result in the following response codes:

A PUT request must never contain a response body (except for responses related to error messages)!

Justification

The PUT operation should be used primarily for updating the existing state of a resource. Within the principle of separation of concerns, this is also its only intended purpose. Creating a new resource instance or retrieving the updated resource state does not fall under the responsibility of the PUT operation. For this reason, PUT does not return a response body, except for status- or error messages.

Another reason why PUT does not return a resource as a response is related to caching. The results of a PUT operation are not necessarily cacheable, unlike GET.

Exception

In special cases, a PUT operation may return a 200 – OK response along with a response payload containing details about the update process. However, this does not mean that the full resource state is included in the response. Instead, it is primarily used for returning status records that provide metadata pertaining to the executed operation.

POST Operation

Explanation

Create a new resource

The primary function of the POST operation on a collection is to create a new resource within that collection. The requester typically provides the desired state of the resource in the request body without specifying a primary key.

A POST operation in this form should never contain a response body (except for responses related to error messages)!

The operation may result in the following response codes:

A POST operation can also be used to implement a complex search function. In this case, it is strongly recommended to create a separate search endpoint within the respective collection (effectively acting as a controller). This ensures a clear distinction between resource creation (POST on ) and resource searching (POST on /search). The POST request contains one or more filters, and the response includes the found results (repeating the POST call in case of pagination).

The chosen solution follows a functional semantic approach. In other words, the operation behaves as a remote procedure call. This does not fully align with traditional REST principles but has the significant advantage of being easy to implement and understand.

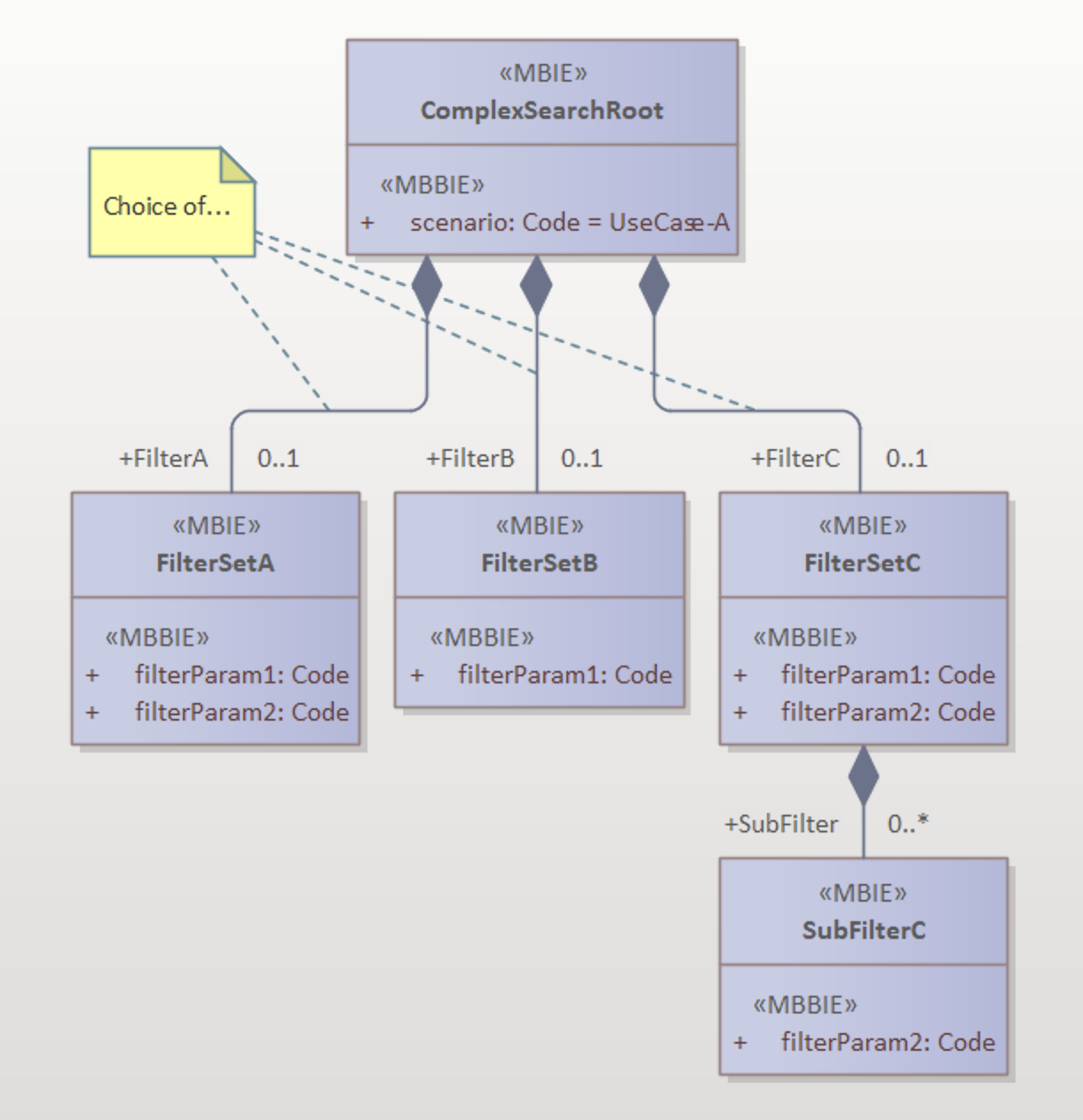

The request payload for a complex search function may consist of a choice between different filter objects, where each filter object implements a different use case for the search function. In this case, the root object (containing the filters) may include one or more discriminator attributes that determine which filter is relevant for a specific search query. Alternatively, the server can infer the use case from the provided choice item, as a choice only allows a single option. This approach prevents the proliferation of search endpoints within the same collection while allowing easy expansion of search functionalities with new use cases.

Example:

The example illustrates a complex search with three different filter sets. The scenario discriminator attribute explicitly indicates which filter set is relevant.

The operation may result in the following response codes:

Alternative solution

A more ‘REST-compliant’ alternative of a complex search is also possible. This would require three separate operations:

  1. Create a “search resource” using POST and filters (effectively creating a “view” on the data). This returns the search-resource through the Location header;
  2. Perform one or more GET operations on the search-resource returned by step 1 to retrieve the data. These GET operations could implement paging according to the paging rule.
  3. Delete the search-resource using DELETE on it’s endpoint.

This implementation, using persistent filters, can be advantageous when the filters are complex, expensive to create and/or are reusable over a longer period of time. Like the default complex search implementation, this alternative requires a /search endpoint.

Justification

POST as a Create Operation

Use the POST operation primarily for creating a new resource. As part of the principle of separation of concerns, this is its only responsibility. Retrieving the updated resource state does not fall under the responsibility of the POST operation. For this reason, POST does not return a response body, except for status- or error messages. However, it does return a link to the newly created resource (through the Location header parameter), which can then be retrieved using GET.

Another reason why POST does not return a resource in its response is related to caching. A POST operation is not idempotent, and its results are not cacheable, unlike GET.

POST as a Complex Search Function

Using POST to implement complex search functions is a widely accepted best practice as long as no alternative exists (the QUERY operation is under development, but general support for it is still lacking).

From a maintainability and readability perspective, it is important to distinguish between both variants. Therefore, it is recommended to place the search variant under a separate /search endpoint to avoid future conflicts with the create variant.

Exception

POST as a Create Operation

In some cases, both parties may have a resource key. In such situations, the party that manages the resource always determines the primary key. Any alternative key should be assigned to a designated functional attribute within the resource.

Possible Scenarios:

  1. The requester sends their key as the master resource ID to the server. When creating the resource on the server, this key is replaced by a new server-generated key, and the requester’s key is moved to another predefined attribute.
  2. The requester sends their key as an alternative resource ID to the server. When creating the resource, nothing changes; only a new server-generated master resource ID is added.
  3. The requester sends their key as the master resource ID to the server. If the key is valid as a master resource ID, the server adopts it. Both parties now have the same key. If the key is invalid, the server returns a 409 – Conflict error.
  4. The requester sends their key as the master resource ID to the server. The server ignores this key and replaces it with its own key when creating the resource. The requester detects this change (e.g., by inspecting the Location header) and updates their version with the new key.

In all cases, the requester must never assume that a provided key will actually be used as the unique resource identifier, unless this is explicitly specified in the service design documentation!

DELETE Operation

Explanation

A DELETE operation on a single resource is intended to remove that resource. More specifically, this means that subsequent operations on the resource should return a 404 (“Not Found”) error code. Additionally, the requester may include an If-Match header containing the ETag key known to them for the respective resource. This allows the server to validate the resource state before executing the delete operation (see RFC-7232 for details)..

In theory, a DELETE operation can also be applied to an entire collection, resulting in the removal of all resources within that collection.

A DELETE operation should never contain a response body (except for responses related to error messages), with rare exceptions (see “Exception” below).

The operation may result in the following response codes:

Justification

The DELETE operation is solely intended for removing one or more resources. Within the principle of separation of concerns, this is its only responsibility. Returning the last known state or any other data is not part of the DELETE operation’s responsibility. For this reason, DELETE does not return a response body, except for success or error messages.

Exception

In special cases, a DELETE operation may return a 200 – OK response along with a response payload containing details about the deletion process. The HTTP specification allows DELETE to include a status response.

However, this does not mean that the full resource state (which no longer exists) is included in the response. Instead, it is primarily used for returning archive links or similar references in cases where the resource was not physically deleted but was instead archived.

For DELETE operations on a collection, it may be useful to include information in the response indicating the number of resources successfully deleted, along with any relevant statistical details.

PATCH Operation

Explanation

A PATCH operation is always performed on a unique resource (i.e., a URL that determines the unique identity of the resource). With a PATCH operation, it is possible to selectively update parts of a resource. Within the HTTP standard, PATCH is a special case because it is not part of the core HTTP specification but is instead described in several separate RFCs (thus, it should be considered an extension to HTTP). There are also multiple forms of PATCH, each with its own challenges. This web page provides a useful overview and also refers to an alternative implementation (JSON Merge Patch).

The original implementation of PATCH (JSON Patch) uses a set of “update rules” that allow the requester to specify exactly what should be done (delete, add, replace, copy). This is a relatively complex mechanism but has the advantage of explicitly defining the intended changes. Example:

[
{ "path": "/a/b/c", "op": "test", "value": "foo" },
{ "path": "/a/b/c", "op": "remove" },
{ "path": "/a/b/c", "op": "add", "value": ["foo", "bar"] },
{ "path": "/a/b/c", "op": "replace", "value": 42 },
{ "path": "/a/b/c", "op": "move", "to": "/a/b/d" },
{ "path": "/a/b/d", "op": "copy", "to": "/a/b/e" }
]

This model is fully described in RFC 6902 and is allowed as an implementation, provided it is explicitly mentioned in the service design documentation, as it requires considerable implementation effort from both the client and the server. The advantage, however, is that it makes the intended changes very explicit.

The content type for this PATCH variant should be application/json-patch+json.

As a simpler alternative, JSON Merge Patch can be used. The content type for this PATCH variant should be application/merge-patch+json. The advantage of this second variant is that it is easier to implement, as only the modified content needs to be transmitted. The disadvantages include the lack of explicit expressiveness and poor support for arrays (to modify an array, a complete new version of the array must be provided). Because the request payload in this case must support many variations (all permutations possible within the data model), an explicit schema is generally not used for the request, but rather a JSON “any” schema. The server dynamically validates the received data and applies the identified structures to the existing resource state where possible.

Additionally, along with the resource identification, the client may also provide an If-Match header containing the ETag key known to the client for the given resource. This allows the server to validate the state of the resource before executing the update operation (see guideline XXX for details).

The operation may result in the following response codes:

A PATCH operation should not contain a response body (except for error messages that are part of failure responses)!

Justification

The PATCH operation is intended for selectively updating a resource. In the context of responsibility separation, this is also its sole function. Returning the latest known state, for example, does not fall under the responsibility of this operation. For this reason, PATCH does not return a response body, other than status- or error messages.

Exception

In special cases, a PATCH operation may return a 200 – OK response along with a response payload containing details about the update process. However, this does not mean that the full resource state is included in the response. Instead, it is primarily used for returning status records that provide metadata pertaining to the executed operation.

HEAD Operation

Explanation

A HEAD operation is always performed on a unique resource (i.e., a URL that determines the unique identity of the resource). HEAD allows retrieving only the HTTP headers that the server would have sent if the corresponding GET request had been executed, but without the complete payload. The HEAD operation is only useful if the server returns meaningful header information. The most relevant headers include:

The operation may result in the following response codes:

A HEAD operation should never contain a response body (except for error messages in failure responses)!

Justification

The HEAD operation can be useful for retrieving metadata (such as ETag and other headers) without receiving the full payload. Possible use cases include checking whether a resource exists or determining if a resource has been modified (in which case the server should return the ETag header).

Exception

None.

OPTIONS Operation

Explanation

The purpose of the OPTIONS operation is to request metadata for a given endpoint (a resource). The response consists of a set of HTTP header parameters that indicate, among other things, which operations are allowed for that endpoint, whether and for how long responses may be cached, which security requirements apply, which content types are accepted, etc. Here is an example of an OPTIONS response:

HTTP/1.1 204 No Content
Allow: OPTIONS, GET, HEAD, POST
Cache-Control: max-age=604800
Date: Thu, 13 Oct 2016 11:45:00 GMT
Server: EOS (lax004/2813

The server may send the following header parameters in an OPTIONS response:

The server may also send other header parameters if they are considered relevant in the given context.

The operation may result in the following response codes:

An OPTIONS operation should never contain a response body (except for error messages in failure responses)!

Justification

Supporting the OPTIONS operation can be useful for clients to gain insight into the operations and/or content supported on specific endpoints. However, the OPTIONS operation should never return information that could lead to a violation of security and/or privacy regulations.

Exception

None.
